Intrinsically Safe Lasers, Radios and Cameras

Stotts have been supplying the NSW and Queensland (QLD) Coal Mines with Intrinsically Safe (I.S.) Equipment for 20 years. We are now pleased to realease our new range of Intrinsically Safe Lasers IEC EX ia Certified for Group I - Coal, and Group II -other Hazardous Areas, such as Oil and Gas and Chemical Plants Ex ia I/IIC T3 IP55

intrinsically safe radio Intrinsically Safe Radio LD60 Intrinsically Safe Laser intrinsically safe radio Intrinsically safe headlight

Intrinsically Safe Lasers

I.S. Lasers are currently available in four module each with its own features and benifits:

  • LD-25 - Powered by AA Batteries - 150 M Range - with RED Beam
  • LD-35 - Powered by C Batteries - 150 M Range - with RED Beam
  • LD-35-G - Powered by C Batteries - 200 M Range - with GREEN Beam
  • LD-60 - Powered by D Batteries - 300 M Range - with RED Beam

LD-25 Intrinsically Safe Laser

This is the smallest laser in our new range. The LD25 is IEC EX ia Certified as an Intrinsically Safe Laser. LD-25 The smallest I.S. Laser we produce. Designed to fit into the older Hexagonal Designed mounts. This smallest I.S. Laser (LD-25X-635P) is designed to be used up to 125 metres.

The LD-25 Intrinsically Safe Laser Features:

  • Light Weight
  • Well Protected in Metal Housing (Stainless Steel Outer body with Brass Inserts at each end)
  • Round design which has been rolled so the laser can be rotated without moving the beam
  • Push ON / OFF Switch at rear, is recessed into the Battery Retainer for Physical Protection
  • Certainty of Support, Repair & Parts from a long established company with team of Engineers.
  • Powered by 2 AA-size primary cell Powercell type PC15AU
  • Reverse battery protection which prevents any connection if batteries are inserted incorrectly
  • Classified Class 2M alignment laser system
  • Range up to 125 metres.
  • Made in Australia

Click on the picture below for more information on this IEC Certified I. S. Laser, or use the Product Information tabs (Left Side) for additional information, Accessories and Certification Documents.

The LD-25 Intrinsically Safe Laser Certification Information

  • IEC Certificate of Conformity to IEC EX ia I/II C 135 Deg C (T4)
  • IEC EX ia I/II C T3 - (200)Deg C
  • SIM 13 - 0004
  • Group I / II C
  • Class 2M
  • Type of Protection Ex ia
  • Temperature Classification 134 Deg C
  • Degree of Ingress Protection IP55
  • NEWLY CERTIFIED MARCH 2013
  • Based on the INDUSTRY STANDARD LD60 I.S. Laser - Quality and Design
  • Available with RED Laser Output
  • 2 AA-size primary cell Powercell type PC15AU.

LD-35 - Intrinsically Safe Laser

This is the middle sized laser in our new range. The LD35 is IEC EX ia Certified as an Intrinsically Safe Laser. LD-35 Improving on the Older SLX we paid to have certified as IEC EX ia I/IIB 136 Deg C, to be SIM 09-0005. This new LD-35 I.S. Laser has a longer range and Longer Battery Life, than that SLX. The LD-35X Laser is designed to allow it's use in longer pillars up to 150 metres, when supplied with RED Beam. The LD-35X Laser is designed to allow it's use in longer pillars up to 200 metres, when supplied with GREEN Beam.

The LD-35 Intrinsically Safe Laser Features

  • Single Unit, removing all the earlier models issues with Battery Connections
  • AVAILABLE IN CHOICE OF COLOURS - RED or GREEN
  • 7 day Battery Life (Red) to allow controlled change at Weekly Intervals
  • 3 day Battery Life (Green) due to the less Efficient Green Laser Diode.
  • RATED IEC Ex ia I/IIC T3 when powered by Powercell PC14AU
  • RATED IEC Ex ia I/IIC T4 when powered by Panasonic LR14XW
  • Class 2M Laser
  • IP Rated at - IP55
  • Certainty of Support, Repair & Parts from a long established company with a team of Engineers.
  • Well Protected in Metal Housing (Stainless Steel Outer body with Brass Inserts at each end)
  • Push ON / OFF Switch at rear, is recessed into the Battery Retainer for Physical Protection
  • Newly Certified from March 2013.
  • Based on the LD60 design of quality.
  • Made in Australia.

Mid range Intrinsically Safe Laser, for Underground Coal Mining Industry, for Drivage distances up to 150 M - ( Red Beam) or 200 M (Green Beam)

The LD-35 Intrinsically Safe Laser Certification Information

  • IEC EX ia I/IIC T3 / T4
  • SIM 13 - 0004
  • IEC Certificate of Conformity to IEC EX ia I/II C
  • Group I / II C
  • Class 2M
  • Type of Protection Ex ia
  • Temperature Classification T3 with Powercell PC14AU - T4 with Panasonic LR14XW
  • Degree of Ingress Protection IP55
  • NEWLY CERTIFIED MARCH 2013
  • Based on the INDUSTRY STANDARD LD60 I.S. Laser - Quality and Design
  • Available with RED or GREEN Laser Output
  • 2 x 'C' -size primary cells.

LD-60 - Intrinsically Safe Laser

LD-60 The now Undergound Coal mining Standard laser. To IECExia SIM 11.0003 The LD-60 Laser is designed to allow it's use in the longest pillars up to 300 metres. Single Unit, removing all the earlier models issues with Battery Connections. This is the largest laser in our new range. The LD60 is IEC EX ia Certified as an Intrinsically Safe Laser. This is now the Coal Mining Industry STANDARD, with more than 150 units in service in NSW and Queensland underground coal mines. The quality of this laser has been built into the now smaller LD25 and LD35 Lasers detailed above.

LD-60 Intrinsically Safe Laser Features

  • More than 7 days Battery Life, to allow controlled change at Weekly Intervals.
  • Powered by 'D' Size Batteries.
  • RATED IEC Ex ia I/IIC T4 IP55
  • Class 2M Laser
  • Ingress Protection Rated - IP55
  • Certainty of Support, Repair & Parts from a long established company with a team of Engineers.
  • Well Protected in Metal Housing (Stainless Steel Outer body with Brass Inserts at each end)
  • Push ON / OFF Switch at rear, is recessed into the Battery Retainer for Physical Protection
  • The Standard for Long Distance Applications in Underground Coal Mines
  • more than 150 Units in service in NSW and Queensland.
  • Made in Australia.

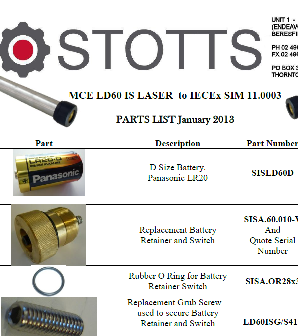

Spare Parts Listing & Accessories for the LD60 can be viewed by clicking the image above, or here.

The LD-60 is the industry standard for undergroung coal mines through out Australia

LD - 60 - Long range Intrinsically Safe Laser, for Underground Coal Mining Industry, for Drivage distances up to 300 M - with Red Beam.

LD-60 Intrinsically Safe Laser Certification Information

  • IEC Certificate of Conformity to IEC EX i(a) I/II C
  • IEC EX ia I/IIC T4
  • SIM 11 - 0003
  • Group I / II C
  • Class 2M
  • Type of Protection Ex ia
  • Temperature Classification T4
  • Degree of Ingress Protection IP55
  • Available with RED Laser Output
  • 4 x 'D' -size primary cells.

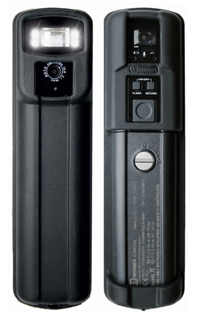

Intrinsically Safe Camera - iCam501 Ultra

The intrinsically safe camera - iCAM501 Ultra is a hazardous area camera which is ATEX and IECEx certified and can be used in all sectors of industry. These include Chemical Pharmaceutical plants, Oil Gas production platforms, Refineries and Mines to name but a few. Click Here, for more information

  • Intrinsically Safe Digital Camera
  • iCAM501 Ultra
  • ATEX II 1 G Ex ia IIB T4 Ga, II 2 G Ex ia IIC T4 Gb, M1 Ex ia I Ma 0°C to +60°C
  • IECEx - Ex ia IIB T4 Ga, Ex ia IIC T4 Gb, - Ex ia I Ma 0°C to +60°C
  • IP65
  • High Performance Lens
  • Powerful LED Flash Array
  • Time & Date Stamp on Image
  • Advanced Image Sharpness Analysis
  • Voice Recording to document Image for record and reporting purposes
  • Made in the UK by Extronics www.extronics.com

CLICK HERE for further information and full Technical Information, sample pictures and Video.

Intrinsically Safe Radios - IECEX Radios

The Entel intrinsically safe radios are built without compromise to deliver loud and crisp audio using the latest compander noise reduction technology. Uniquely able to withstand total immersion in water to a depth of 5 metres for 1 hour, Entel's intrinsically safe radios are therefore extremely resistant to corrosion, more than a match for the likely hazards encountered in any field of operation. Rating for tough enduring performance the Entel intrinsically safe radios are designed to withstand shock, vibration, dust and moisture, ensuring many years of trouble free use in the most hostile environments. Click Here, for more information

IECEx Intrinsically Safe Radio IECEx Intrinsically Safe Radio

ROUTINE SERVICE MONITOR

Routine Service Monitor

This Unit is an older model designed to record hours of Machinery Operation, and advise operators of the requirement to service. The Unit is supplied in a Flameproof Housing, and can be reset by means of a magnet (available as a spare part) so that the unit does not need to be opened. Still in service in Underground Coal Mines.
